Using Amazon API Gateway (Rest API) with Swift Lambda - Part 2

The first part of this three-part blog post series showed how we can integrate API Gateway with our Swift Lambda function. This blog post will continue with the setup_aws.sh script to add a POST integration.

You can clone the code from my GitHub repository for the Swift Lambda function and scripts.

Integration 2: Create a POST method with a JSON payload

Rename the 12 apigateway create-deployment.. to 19 apigateway create-deployment.. We will add the next commands between step 11 and 19.

Add the following command to the setup_aws.sh following step 11 (but before step 19):

echo "12 apigateway create-model..."
aws apigateway create-model \
    --rest-api-id ${API_ID} \
    --name ${INPUT_MODEL_NAME} \
    --content-type application/json \
    --schema "{\"type\": \"object\", \"properties\": { \"a\" : { \"type\": \"number\" },  \"b\" : { \"type\": \"number\" }, \"op\" : { \"type\": \"string\" }}, \"title\": \"${INPUT_MODEL_NAME}\"}" \
    > results/aws/create-input-model.json

[ $? == 0 ] || fail 12 "Failed: AWS / apigateway / create-model"

We are creating an input model which is used by API Gateway to validate the incoming request body. The schema describes the input as two numbers, a and b and the operation op which is a string.

We also needs an output model which describes the data structure of the calculated output from the Lambda function. It can be used to map the integration response data to a different model. It is not used in the tutorial here, but I include it for completeness. The AWS tutorial is adding it in the tutorial in Integration 2 step 9, so we do it as well:

echo "13 apigateway create-model..."
aws apigateway create-model \
    --rest-api-id ${API_ID} \
    --name ${OUTPUT_MODEL_NAME} \
    --content-type application/json \
    --schema "{ \"type\": \"object\", \"properties\": { \"c\" : { \"type\": \"number\"}}, \"title\":\"${OUTPUT_MODEL_NAME}\"}" \
    > results/aws/create-output-model.json

[ $? == 0 ] || fail 13 "Failed: AWS / apigateway / create-model"

The same with the results model. It describes the data structure of the returned response data. It references both the Input and Output schemas, but we don't use it in the tutorial:

echo "14 apigateway create-model..."
aws apigateway create-model \
    --rest-api-id ${API_ID} \
    --name ${RESULT_MODEL_NAME} \
    --content-type application/json \
    --schema "{ \"type\": \"object\", \"properties\": { \"input\":{ \"\$ref\": \"https://apigateway.amazonaws.com/restapis/${API_ID}/models/${INPUT_MODEL_NAME}\"}, \"output\":{\"\$ref\": \"https://apigateway.amazonaws.com/restapis/${API_ID}/models/Output\"}}, \"title\": \"${OUTPUT_MODEL_NAME}\"}" \
    > results/aws/create-result-model.json

 [ $? == 0 ] || fail 14 "Failed: AWS / apigateway / create-model"

We can now create the POST http method:

echo "15 apigateway put-method..."
aws apigateway put-method \
    --region ${REGION} \
    --rest-api-id ${API_ID} \
    --resource-id ${RESOURCE_ID} \
    --http-method POST \
    --authorization-type NONE \
    > results/aws/put-post-method.json

[ $? == 0 ] || fail 15 "Failed: AWS / apigateway / put-method"

Note that we use RESOURCE_ID which is the calc resource we created in step 6 in the first post of this three-part post series. This means that the endpoint of the POST method will also end in calc.

Next we create the method response for the POST method, which will be 200 if everything went ok:

echo "16 apigateway put-method-response..."
aws apigateway put-method-response \
    --region ${REGION} \
    --rest-api-id ${API_ID} \
    --resource-id ${RESOURCE_ID} \
    --http-method POST \
    --status-code 200 \
    --response-models application/json=Empty \
    > results/aws/put-method-response.json

[ $? == 0 ] || fail 16 "Failed: AWS / apigateway / put-method"

Now we are ready to create the integration for the POST http method. Note that we use the AWS type, the same as we did in the previous blog post:

echo "17 apigateway put-integration..."
aws apigateway put-integration \
    --region ${REGION} \
    --rest-api-id ${API_ID} \
    --resource-id ${RESOURCE_ID} \
    --http-method POST \
    --type AWS \
    --integration-http-method POST \
    --uri arn:aws:apigateway:${REGION}:lambda:path/2015-03-31/functions/${LAMBDA_ARN}/invocations \
    --credentials ${ROLE_ARN} \
    --passthrough-behavior WHEN_NO_MATCH \
    > results/aws/put-post-integration.json

[ $? == 0 ] || fail 17 "Failed: AWS / apigateway / put-integration"

And to complete the POST integration, we create the integration response. If we wanted, we could map the response from the Lambda function to another JSON, but in this case we just return the JSON that the Swift Lambda function returns:

echo "18 apigateway put-integration-response..."
aws apigateway put-integration-response \
    --region ${REGION} \
    --rest-api-id ${API_ID} \
    --resource-id ${RESOURCE_ID} \
    --http-method POST \
    --status-code 200 \
    --response-templates application/json="" \
    > results/aws/put-post-integration-response.json

[ $? == 0 ] || fail 18 "Failed: AWS / apigateway / put-integration-response"

Add the command to test the POST endpoint at the end of the file:

echo
echo
echo "Integration 2"
echo "Testing POST:"
echo "8 + 6"
cat << EOF
curl -i --request POST \
--header "Content-Type: application/json" \
--data '{"a": 8, "b": 6, "op": "add"}' \
https://${API_ID}.execute-api.eu-west-1.amazonaws.com/${STAGE}/calc
EOF
echo

curl -i --request POST \
--header "Content-Type: application/json" \
--data '{"a": 8, "b": 6, "op": "add"}' \
https://${API_ID}.execute-api.eu-west-1.amazonaws.com/${STAGE}/calc

Deploy Lambda function with API Gateway

We have now endpoints for both a GET http method with query parameters, and a POST http method with parameters in the http body. Both should produce the same result.

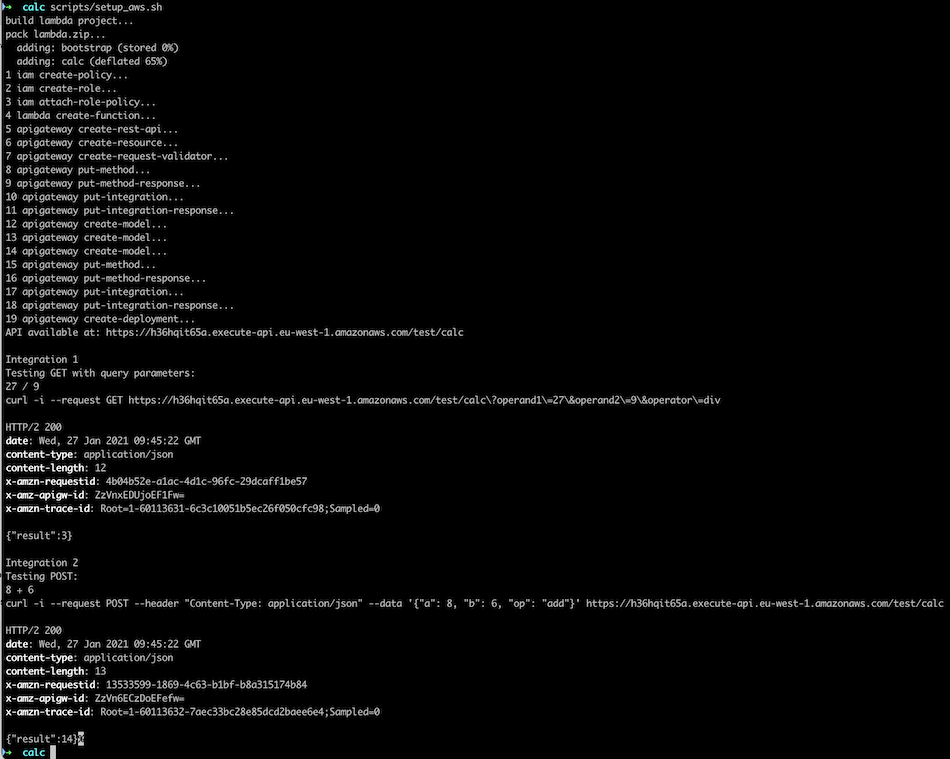

Start the setup script with the command scripts/setup_aws.sh, and we should now at the end have a result like this:

Integration 2 result

The last blog post in this three-part series will show how we can integrate with a GET method that uses path parameters.
