Published 2021-04-24
Rekognition Lambda Function with Swift Part 2
In the first part of this series I showed how to make a simple Lambda function in Swift with the help of the Soto library, which uses the AWS Rekognition machine learning service to find information about photos you upload to your AWS S3 bucket.
In this blog post I will introduce another Lambda function, the leftmost Lambda function in the image below. The Lambda function will receive an action and a key (AWS S3 key). The key is the name of the photo stored in the S3 bucket, and the action is either getLabels which gets the information about a photo you have already uploaded from the DynamoDB database, or deleteImage that deletes the photo from the S3 buckets and from the database. We will make the Lambda function in Swift, and call it ServiceFunction.
We will also create a second S3 bucket, to keep a thumbnail of the image we upload. We create the thumbnail with the help of the ImageMagick library. But first I had to make a Swift package of the library, and this blog post I made shows how to do this.
Because we have two Swift Lambda functions, both with their own Swift Package Manager and Source folder, we have to make a new lambda folder which contains a folder for each of the two Lambda function sources, rekfunction and servicefunction.
The full code base is available from my GitHub account, and I have a branch for each part of this series. The branch of this part is part2.
Swift Package Manager - rekfunction
Because we are using the ImageMagick library, we have to include it as a dependency from my GitHub repository. For more information about the library, check out my blog post about it. Add it to lambda/rekfunction/Package.swift.
// swift-tools-version:5.3
// The swift-tools-version declares the minimum version of Swift required to build this package.
import PackageDescription
let package = Package(
name: "RecognitionFunction",
dependencies: [
.package(url: "https://github.com/swift-server/swift-aws-lambda-runtime.git", .upToNextMajor(from: "0.3.0")),
.package(url: "https://github.com/soto-project/soto.git", from: "5.0.0"),
.package(url: "https://github.com/imyrvold/CImageMagick.git", from: "1.0.0")
],
targets: [
// Targets are the basic building blocks of a package. A target can define a module or a test suite.
// Targets can depend on other targets in this package, and on products in packages this package depends on.
.target(
name: "RecognitionFunction",
dependencies: [
.product(name: "AWSLambdaRuntime", package: "swift-aws-lambda-runtime"),
.product(name: "AWSLambdaEvents", package: "swift-aws-lambda-runtime"),
.product(name: "SotoS3", package: "soto"),
.product(name: "SotoRekognition", package: "soto"),
.product(name: "SotoDynamoDB", package: "soto")
]),
.testTarget(
name: "RecognitionFunctionTests",
dependencies: ["RecognitionFunction"]),
]
)
RecognitionFunction
This is the Lambda function we created in part 1, but we need to add the createThumbnail and saveThumbnail functions to the Lambda Swift function. We add an import statement to import the library. I couldn't get the import of the CImageMagickMac to work when compiling for the Macos, but fortunately it works for Linux, and that is important because the Lambda function is going to run in an AmazonLinux2 environment:
import AWSLambdaRuntime
import AWSLambdaEvents
import SotoRekognition
import SotoDynamoDB
import SotoS3
import Foundation
#if os(macOS)
import CImageMagickMac
#else
import CImageMagick
#endif
The handle(context:event:) function first gets the name of the thumbBucket S3 bucket by use of the environment variable that is set by the CDK infrastructure code when the bucket is created:
func handle(context: Lambda.Context, event: In) -> EventLoopFuture<Out> {
let db = DynamoDB(client: awsClient, region: .euwest1)
let rekognitionClient = Rekognition(client: awsClient)
guard let thumbBucket = Lambda.env("THUMBBUCKET") else { return context.eventLoop.makeSucceededVoidFuture() }
We proceed with making the detectLabelsRequest object like we did in part 1, by mapping the records of the S3 input event:
let futureRecords: [AWSLambdaEvents.S3.Event.Record] = event.records
let futureRecordsResult = futureRecords.map { record -> EventLoopFuture<Out> in
let safeKey = record.s3.object.key.replacingOccurrences(of: "%3A", with: ":")
let s3Object = Rekognition.S3Object(bucket: record.s3.bucket.name, name: safeKey)
let image = Rekognition.Image(s3Object: s3Object)
let detectLabelsRequest = Rekognition.DetectLabelsRequest(image: image, maxLabels: 10, minConfidence: minConfidence)
Because we this time will have to make a thumbnail of the image, we have to get the image from the S3 bucket, and call the createThumbnail function to create the thumbnail itself:
return getImage(of: record.s3.bucket.name, with: safeKey, context: context)
.flatMap { output in
let body = output.body
guard let data = body?.asData() else { return context.eventLoop.makeSucceededVoidFuture() }
guard let thumbnail = createThumbnail(for: data, context: context) else { return context.eventLoop.makeSucceededVoidFuture() }
Having successfully created the thumbnail, we can now proceed with detecting the labels in the image with the AWS Rekognition machine learning service, saving the labels in the DynamoDB database, and saving the thumbnail to the thumbnail S3 bucket:
return rekognitionClient.detectLabels(detectLabelsRequest)
.flatMap { detectLabelsResponse -> EventLoopFuture<Void> in
guard let rekLabels = detectLabelsResponse.labels,
let imageLabelsTable = Lambda.env("TABLE") else {
return context.eventLoop.makeSucceededFuture(())
}
// Instantiate a table resource object of our environment variable
let labels = rekLabels.compactMap { $0.name }
let rekEntry = RekEntry(image: safeKey, labels: labels)
let putRequest = DynamoDB.PutItemCodableInput(item: rekEntry, tableName: imageLabelsTable)
// Put item into table
return db.putItem(putRequest)
.flatMap { result in
return saveThumbnail(in: thumbBucket, with: safeKey, for: thumbnail).map { _ in }
}
}
}
}
The complete handle function:
func handle(context: Lambda.Context, event: In) -> EventLoopFuture<Out> {
let db = DynamoDB(client: awsClient, region: .euwest1)
let rekognitionClient = Rekognition(client: awsClient)
guard let thumbBucket = Lambda.env("THUMBBUCKET") else { return context.eventLoop.makeSucceededVoidFuture() }
let futureRecords: [AWSLambdaEvents.S3.Event.Record] = event.records
let futureRecordsResult = futureRecords.map { record -> EventLoopFuture<Out> in
let safeKey = record.s3.object.key.replacingOccurrences(of: "%3A", with: ":")
let s3Object = Rekognition.S3Object(bucket: record.s3.bucket.name, name: safeKey)
let image = Rekognition.Image(s3Object: s3Object)
let detectLabelsRequest = Rekognition.DetectLabelsRequest(image: image, maxLabels: 10, minConfidence: minConfidence)
return getImage(of: record.s3.bucket.name, with: safeKey, context: context)
.flatMap { output in
let body = output.body
guard let data = body?.asData() else { return context.eventLoop.makeSucceededVoidFuture() }
guard let thumbnail = createThumbnail(for: data, context: context) else { return context.eventLoop.makeSucceededVoidFuture() }
return rekognitionClient.detectLabels(detectLabelsRequest)
.flatMap { detectLabelsResponse -> EventLoopFuture<Void> in
guard let rekLabels = detectLabelsResponse.labels,
let imageLabelsTable = Lambda.env("TABLE") else {
return context.eventLoop.makeSucceededFuture(())
}
// Instantiate a table resource object of our environment variable
let labels = rekLabels.compactMap { $0.name }
let rekEntry = RekEntry(image: safeKey, labels: labels)
let putRequest = DynamoDB.PutItemCodableInput(item: rekEntry, tableName: imageLabelsTable)
// Put item into table
return db.putItem(putRequest)
.flatMap { result in
return saveThumbnail(in: thumbBucket, with: safeKey, for: thumbnail).map { _ in }
}
}
}
}
return EventLoopFuture<Out>.andAllSucceed(futureRecordsResult, on: context.eventLoop)
}
This is the createThumbnail function that uses the ImageMagick library to create the thumbnail image. The created thumbnail has the height of 100 pixels, and the width is calculated to keep the aspect ratio of the original image:
func createThumbnail(for data: Data, context: Lambda.Context) -> Data? {
let fileManager = FileManager.default
let path = "/tmp/image.jpeg"
let thumbnailpath = "/tmp/thumbnail.jpeg"
let bool = fileManager.createFile(atPath: path, contents: data, attributes: nil)
MagickWandGenesis()
let wand = NewMagickWand()
let status: MagickBooleanType = MagickReadImage(wand, path)
if status == MagickFalse {
context.logger.info("Error reading the image")
} else {
let width = MagickGetImageWidth(wand)
let height = MagickGetImageHeight(wand)
let newHeight = 100
let newWidth = 100 * width / height
MagickResizeImage(wand, newWidth, newHeight, LanczosFilter,1.0)
MagickWriteImage(wand, thumbnailpath)
}
DestroyMagickWand(wand)
MagickWandTerminus()
return fileManager.contents(atPath: thumbnailpath)
}
The getImage function that grabs the image from the S3 bucket:
func getImage( of bucket: String, with thekey: String, context: Lambda.Context) -> EventLoopFuture<SotoS3.S3.GetObjectOutput> {
let s3 = S3(client: awsClient)
let safeKey = thekey.replacingOccurrences(of: "%3A", with: ":")
guard let key = safeKey.removingPercentEncoding else { return context.eventLoop.makeSucceededFuture(S3.GetObjectOutput()) }
let getObjectRequest = S3.GetObjectRequest(bucket: bucket, key: key)
return s3.getObject(getObjectRequest)
}
The saveThumbnail function that saves the thumbnail to the thumbnail S3 bucket:
func saveThumbnail(in bucket: String, with thekey: String, for data: Data) -> EventLoopFuture<SotoS3.S3.PutObjectOutput> {
let s3 = S3(client: awsClient)
let bodyData = AWSPayload.data(data)
let putRequest = SotoS3.S3.PutObjectRequest(
acl: S3.ObjectCannedACL.publicRead,
body: bodyData,
bucket: bucket,
key: thekey
)
return s3.putObject(putRequest)
}
ServiceFunction
The Package.swift only needs the SotoS3 and SotoDynamoDB dependencies:
// swift-tools-version:5.3
// The swift-tools-version declares the minimum version of Swift required to build this package.
import PackageDescription
let package = Package(
name: "servicefunction",
dependencies: [
.package(url: "https://github.com/swift-server/swift-aws-lambda-runtime.git", .upToNextMajor(from: "0.3.0")),
.package(url: "https://github.com/soto-project/soto.git", from: "5.0.0")
],
targets: [
// Targets are the basic building blocks of a package. A target can define a module or a test suite.
// Targets can depend on other targets in this package, and on products in packages this package depends on.
.target(
name: "servicefunction",
dependencies: [
.product(name: "AWSLambdaRuntime", package: "swift-aws-lambda-runtime"),
.product(name: "AWSLambdaEvents", package: "swift-aws-lambda-runtime"),
.product(name: "SotoS3", package: "soto"),
.product(name: "SotoDynamoDB", package: "soto")
]),
.testTarget(
name: "servicefunctionTests",
dependencies: ["servicefunction"]),
]
)
These are the model structs in the models folder. The input to the Lambda function is an action and a key. The key is the name of the photo stored in the S3 bucket, as well as the name of the thumbnail stored in the thumbnail S3 bucket. The action for the Lambda function is either getLabels to get the labels stored in the DynamoDB database for the photo, or deleteImage to delete the photo from the image bucket and thumbnail bucket, and delete the entry in the DynamoDB database.
The LabelsOutput is the output from the Lambda function when we use the getLabels action, and the DeleteOutput is the output when we use the deleteImage action.
struct Input: Codable {
enum Action: String, Codable {
case getLabels, deleteImage
}
let action: Action
let key: String
}
struct LabelsOutput: Codable {
let labels: [String]
}
struct RekEntry: Codable {
let image: String
let labels: [String]
}
struct DeleteOutput: Codable {
let result: String
}
The ServiceHandler then sets the input and output in this way:
struct ServiceHandler: EventLoopLambdaHandler {
typealias In = Input
typealias Out = APIGateway.Response
let awsClient: AWSClient
And the handle function in the ServiceHandler. We use a switch statement to determine the action to use in the handler, and calls getLabels or deleteImage function:
func handle(context: Lambda.Context, event: In) -> EventLoopFuture<Out> {
let input = event
switch input.action {
case .getLabels:
return getLabels(with: input.key, context: context)
.flatMap { result in
switch result {
case .success(let imageLabel):
let labels = imageLabel.labels
let output = LabelsOutput(labels: labels)
let apigatewayOutput = APIGateway.Response(with: output, statusCode: .ok)
return context.eventLoop.makeSucceededFuture(apigatewayOutput)
case .failure(let error):
let apigatewayOutput = APIGateway.Response(with: error, statusCode: .notFound)
return context.eventLoop.makeSucceededFuture(apigatewayOutput)
}
}
case .deleteImage:
return deleteImage(with: input.key, context: context)
.flatMap { result in
switch result {
case .success(let text):
let apigatewayOutput = APIGateway.Response(with: text, statusCode: .ok)
return context.eventLoop.makeSucceededFuture(apigatewayOutput)
case .failure(let error):
let apigatewayOutput = APIGateway.Response(with: error, statusCode: .internalServerError)
return context.eventLoop.makeSucceededFuture(apigatewayOutput)
}
}
}
}

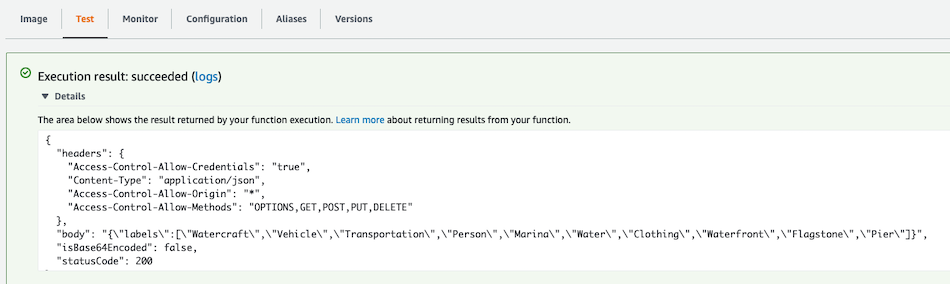

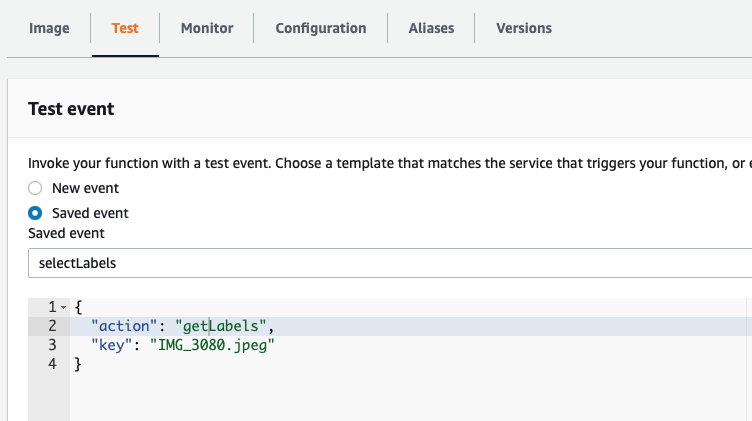

The getLabels function:
func getLabels(with key: String, context: Lambda.Context) -> EventLoopFuture<Result<RekEntry, APIError>> {
guard let imageLabelsTable = Lambda.env("TABLE") else {
return context.eventLoop.makeSucceededFuture(Result.failure(APIError.getLabelsError))
}
let db = DynamoDB(client: awsClient, region: .euwest1)
let input = DynamoDB.GetItemInput(key: ["image": .s(key)], tableName: imageLabelsTable)
return db.getItem(input, type: RekEntry.self)
.flatMap { output in
guard let rekEntry = output.item else {
return context.eventLoop.makeSucceededFuture(Result.failure(APIError.getLabelsError))
}
return context.eventLoop.makeSucceededFuture(Result.success(rekEntry))
}
}
The deleteImage function:
func deleteImage(with key: String, context: Lambda.Context) -> EventLoopFuture<Result<String, APIError>> {
guard let imageLabelsTable = Lambda.env("TABLE"), let bucketName = Lambda.env("BUCKET"), let thumbBucketName = Lambda.env("THUMBBUCKET") else {
return context.eventLoop.makeSucceededFuture(Result.failure(APIError.deleteError))
}
let s3 = S3(client: awsClient)
let db = DynamoDB(client: awsClient, region: .euwest1)
let input = DynamoDB.DeleteItemInput(key: ["image": .s(key)], tableName: imageLabelsTable)
let deleteObjectRequest = S3.DeleteObjectRequest(bucket: bucketName, key: key)
let deleteThumbRequest = S3.DeleteObjectRequest(bucket: thumbBucketName, key: key)
return db.deleteItem(input)
.flatMap { _ -> EventLoopFuture<Result<String, APIError>> in
return s3.deleteObject(deleteObjectRequest)
.flatMap { _ in
return context.eventLoop.makeSucceededFuture(Result<String, APIError>.success("deleted bucket object \(key)"))
}
}
.flatMap { _ -> EventLoopFuture<Result<String, APIError>> in
return s3.deleteObject(deleteThumbRequest)
.flatMap { _ in
return context.eventLoop.makeSucceededFuture(Result<String, APIError>.success("deleted bucket object \(key)"))
}
}
}
CDK Infrastructure Code
We are in a new branch part2, so we need to make sure that the CI/CD infrastructure code in CDK checks out the correct branch. This is in the cdk/lib/devhr-project-cicd-infra.ts file. This is the only change we have in this file. Replace main with part2:
import * as cdk from '@aws-cdk/core';
import * as codepipeline from '@aws-cdk/aws-codepipeline';
import * as codepipeline_actions from '@aws-cdk/aws-codepipeline-actions';
import * as ecr from '@aws-cdk/aws-ecr';
import * as iam from '@aws-cdk/aws-iam';
import * as pipelines from '@aws-cdk/pipelines';
import { LambdaDeploymentStage } from './lambda-deployment';
export class DevhrProjectCicdInfraStack extends cdk.Stack {
constructor(scope: cdk.Construct, id: string, props?: cdk.StackProps) {
super(scope, id, props)
const sourceArtifact = new codepipeline.Artifact();
const cdkOutputArtifact = new codepipeline.Artifact();
const pipeline = new pipelines.CdkPipeline(this, 'CdkPipeline', {
crossAccountKeys: false,
pipelineName: 'devhr-project-pipeline',
cloudAssemblyArtifact: cdkOutputArtifact,
sourceAction: new codepipeline_actions.GitHubSourceAction({
actionName: 'DownloadSources',
owner: 'imyrvold',
repo: 'DevhrProjectCICD',
branch: 'part2',
We have a new S3 bucket for the resized image, and a new Lambda function, so we have to add these to the cdk/lib/devhr-project-stack.ts. First, add the name of the new resized bucket:
import * as cdk from '@aws-cdk/core'
import * as s3 from '@aws-cdk/aws-s3'
import * as lambda from '@aws-cdk/aws-lambda'
import * as dynamodb from '@aws-cdk/aws-dynamodb'
import { Duration } from '@aws-cdk/core'
import * as iam from '@aws-cdk/aws-iam'
import * as event_sources from '@aws-cdk/aws-lambda-event-sources'
const imageBucketName = 'cdk-rekn-imagebucket'
const resizedBucketName = imageBucketName + "-resized"
Then, add the path to the dockerfile for the rekfunction and the servicefunction:
export class DevhrProjectStack extends cdk.Stack {
constructor(scope: cdk.Construct, id: string, props?: cdk.StackProps) {
super(scope, id, props)
const dockerfile = '../lambda/rekfunction/';
const serviceDockerfile = '../lambda/servicefunction/';
After the code that defines the Image Bucket, add the Thumbnail Bucket:
// =================================================================================
// Image Bucket
// =================================================================================
const imageBucket = new s3.Bucket(this, imageBucketName, {
removalPolicy: cdk.RemovalPolicy.DESTROY
})
new cdk.CfnOutput(this, 'imageBucket', { value: imageBucket.bucketName })
// =================================================================================
// Thumbnail Bucket
// =================================================================================
const resizedBucket = new s3.Bucket(this, resizedBucketName, {
removalPolicy: cdk.RemovalPolicy.DESTROY
})
new cdk.CfnOutput(this, 'resizedBucket', { value: resizedBucket.bucketName })
After the Amazon DynamoDB code, which is unchanged, we add the environment variable for the thumbbucket. We also increase the timeout to 30 seconds. The Lambda function needs more time to create the thumbnail:
// =================================================================================
// Amazon DynamoDB table for storing image labels
// =================================================================================
const table = new dynamodb.Table(this, 'ImageLabels', {
tableName: 'ImageLabels',
partitionKey: { name: 'image', type: dynamodb.AttributeType.STRING },
removalPolicy: cdk.RemovalPolicy.DESTROY
})
new cdk.CfnOutput(this, 'ddbTable', { value: table.tableName })
// =================================================================================
// Building our AWS Lambda Function; compute for our serverless microservice
// =================================================================================
const rekFn = new lambda.DockerImageFunction(this, 'recognitionFunction', {
functionName: 'recognitionFunction',
code: lambda.DockerImageCode.fromImageAsset(dockerfile),
environment: {
'TABLE': table.tableName,
'BUCKET': imageBucket.bucketName,
'THUMBBUCKET': resizedBucket.bucketName
},
timeout: Duration.seconds(30)
});
We also need to grant the permission to put the image to the thumbnail bucket for the Lambda function:
rekFn.addEventSource(new event_sources.S3EventSource(imageBucket, { events: [s3.EventType.OBJECT_CREATED] }))
imageBucket.grantRead(rekFn)
resizedBucket.grantPut(rekFn)
resizedBucket.grantPutAcl(rekFn)
table.grantWriteData(rekFn)
rekFn.addToRolePolicy(new iam.PolicyStatement({
effect: iam.Effect.ALLOW,
actions: ['rekognition:DetectLabels'],
resources: ['*']
}))
At last, we add the new Lambda function for the serviceFunction:
// =====================================================================================
// Lambda for Synchronous Front End
// =====================================================================================
const serviceFn = new lambda.DockerImageFunction(this, 'serviceFunction', {
functionName: 'serviceFunction',
code: lambda.DockerImageCode.fromImageAsset(serviceDockerfile),
environment: {
'TABLE': table.tableName,
'BUCKET': imageBucket.bucketName,
'THUMBBUCKET': resizedBucket.bucketName
},
timeout: Duration.seconds(30)
});
imageBucket.grantWrite(serviceFn);
resizedBucket.grantWrite(serviceFn);
table.grantReadWriteData(serviceFn);
}
}
Test Rekognition with Lambda
With Terminal, we can now bootstrap the infrastructure code:
cdk bootstrap \
--cloudformation-execution-policies arn:aws:iam::aws:policy/AdministratorAccess \
aws://<your AWS Account ID>/eu-west-1
and deploy it: cdk deploy
When the pipeline have built the Lambda function, we can test it with a photo. First, list all your S3 buckets with the command:
aws s3 ls
You should get the two lambda image buckets in the result. I got this back:
2021-04-25 09:13:31 lambdadeploymentstage-de-cdkreknimagebucketa588dc-1123ayav2rc42
2021-04-25 09:11:48 lambdadeploymentstage-de-cdkreknimagebucketresize-12azqz1h8qxs5
in addition to the ci/cd s3 bucket.
Copy a photo of your choice to the first image bucket (the one which doesn't have resize in it's name):
aws s3 cp ~/Pictures/IMG_3080.jpeg s3://lambdadeploymentstage-de-cdkreknimagebucketa588dc-1123ayav2rc42
Check that the image has been uploaded with:
aws s3 ls s3://lambdadeploymentstage-de-cdkreknimagebucketa588dc-1123ayav2rc42
and check that the thumbnail has been created in the other S3 bucket:
aws s3 ls s3://lambdadeploymentstage-de-cdkreknimagebucketresize-12azqz1h8qxs5.
If you want, you could now copy the resized photo back to your disk, and open it in Preview to see that it is in fact resized:
aws s3 cp s3://lambdadeploymentstage-de-cdkreknimagebucketresize-12azqz1h8qxs5/IMG_3080.jpeg ~/Desktop/
open -a Preview ~/Desktop/IMG_3080.jpeg
Also check that DynamoDB has got the labels for the photo:
aws dynamodb scan --table-name ImageLabels
Test ServiceFunction Lambda
To test the serviceFunction, open up the Lambda Function console with your browser, and select the serviceFunction link. Select the Test tab, and adjust the json to something like this. Use your own key for the photo name:
The result should be something like this:
Now, set the action to deleteImage, and click the Test button again. You should again get a successful result, and to see that the images are really deleted from the S3 buckets, run the aws commands again:
aws s3 ls s3://lambdadeploymentstage-de-cdkreknimagebucketa588dc-1123ayav2rc42
aws s3 ls s3://lambdadeploymentstage-de-cdkreknimagebucketresize-12azqz1h8qxs5
You should get empty result now. And do the same with the database:
aws dynamodb scan --table-name ImageLabels
This should also return empty.
Conclusion
We have in this part introduced a new resized bucket and a new Lambda function, and tested that we can in fact resize an image that we have stored in an S3 bucket, and we can use the new Lambda function to get information about the stored photo, and also delete the image.
In my next blog post in this serial, I will show how to connect the AWS API Gateway (Rest API) to the Lambda serviceFunction.
